Maximum lifting capacity · 150 t
Indicates the lifting foundation available in the plant. Each lifting plan remains subject to equipment weight distribution, work position, rigging and operating conditions.
MANUFACTURING
Manufacturing Capability for Large Process Equipment
Fabrication of large, heavy and custom pressure vessels and process equipment for major chemical and industrial projects.
MANUFACTURING SCALE
Manufacturing foundation
The following figures use the currently confirmed public company profile.40+ yearsManufacturing heritage
Approx. 150 muManufacturing base
Approx. 2,000 sets/yearPressure vessel output
Approx. 16,000 t/yearAnnual processing capacity
VERIFIED PARAMETERS
Key manufacturing capability
Manufacturing and inspection capability is assessed against equipment material, dimensions, structure and project technical requirements.Plate rolling equipment capability · 120 mm
An equipment capability value, not a guarantee for every material, plate width or shell diameter. Project review must consider material, width, diameter and forming requirements.
Heat treatment furnace capacity · Approx. 5 m × 5 m × 25 m
Current confirmed furnace capability. Applicability, loading, temperature measurement and process planning are confirmed against equipment dimensions, material and project requirements.
Non-destructive examination · RT / TOFD, etc.
Multiple NDE methods are available and selected against material, welded-joint configuration, equipment structure and project specification.
CAPABILITY CHAIN
From manufacturing base to shipment
Nine linked sections explain the real manufacturing route without reducing project capability to a single machine value.01

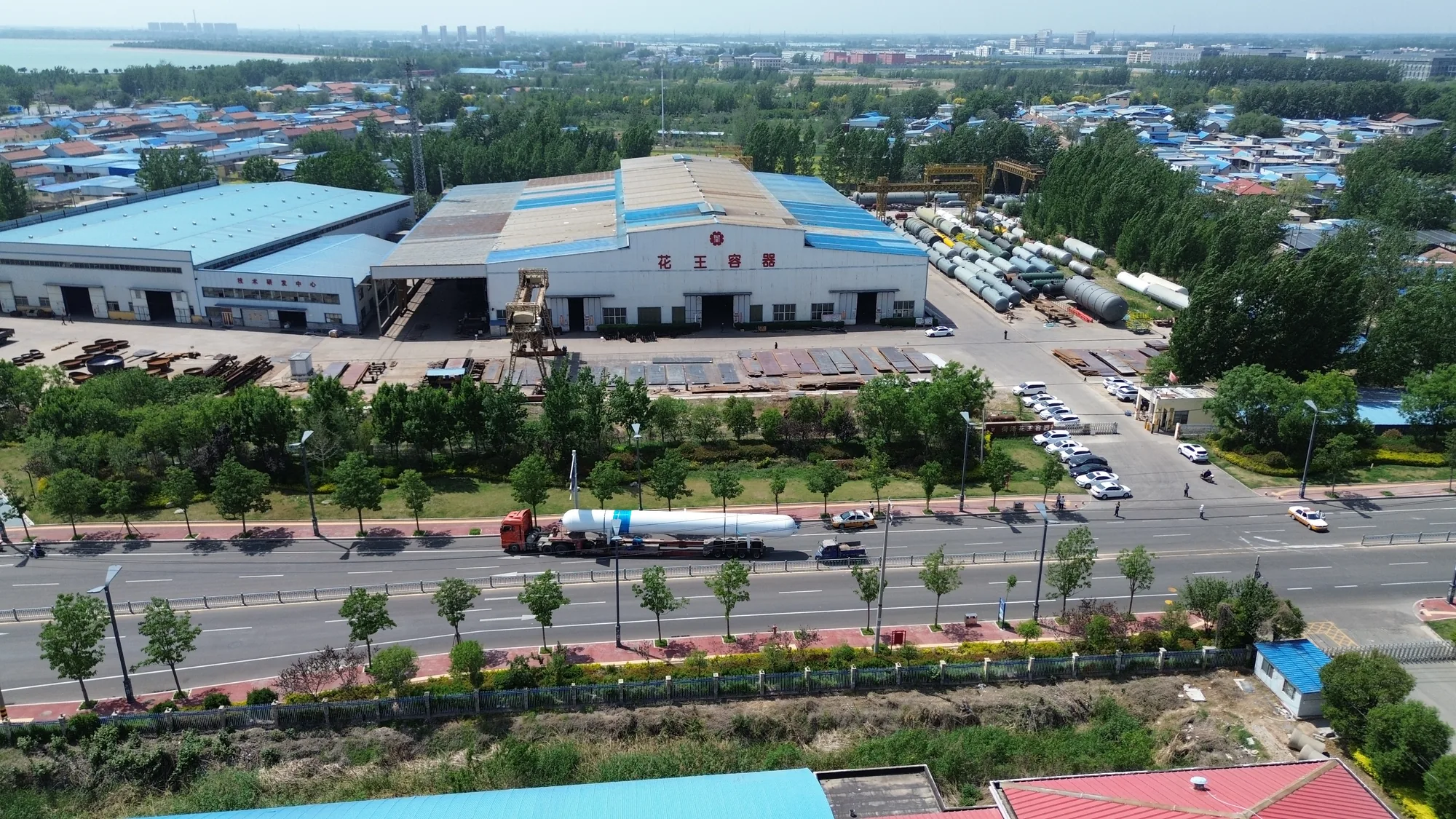

Manufacturing base
An approximately 150-mu manufacturing base supporting fabrication, internal handling, inspection and shipment of large pressure vessels and process equipment.
02

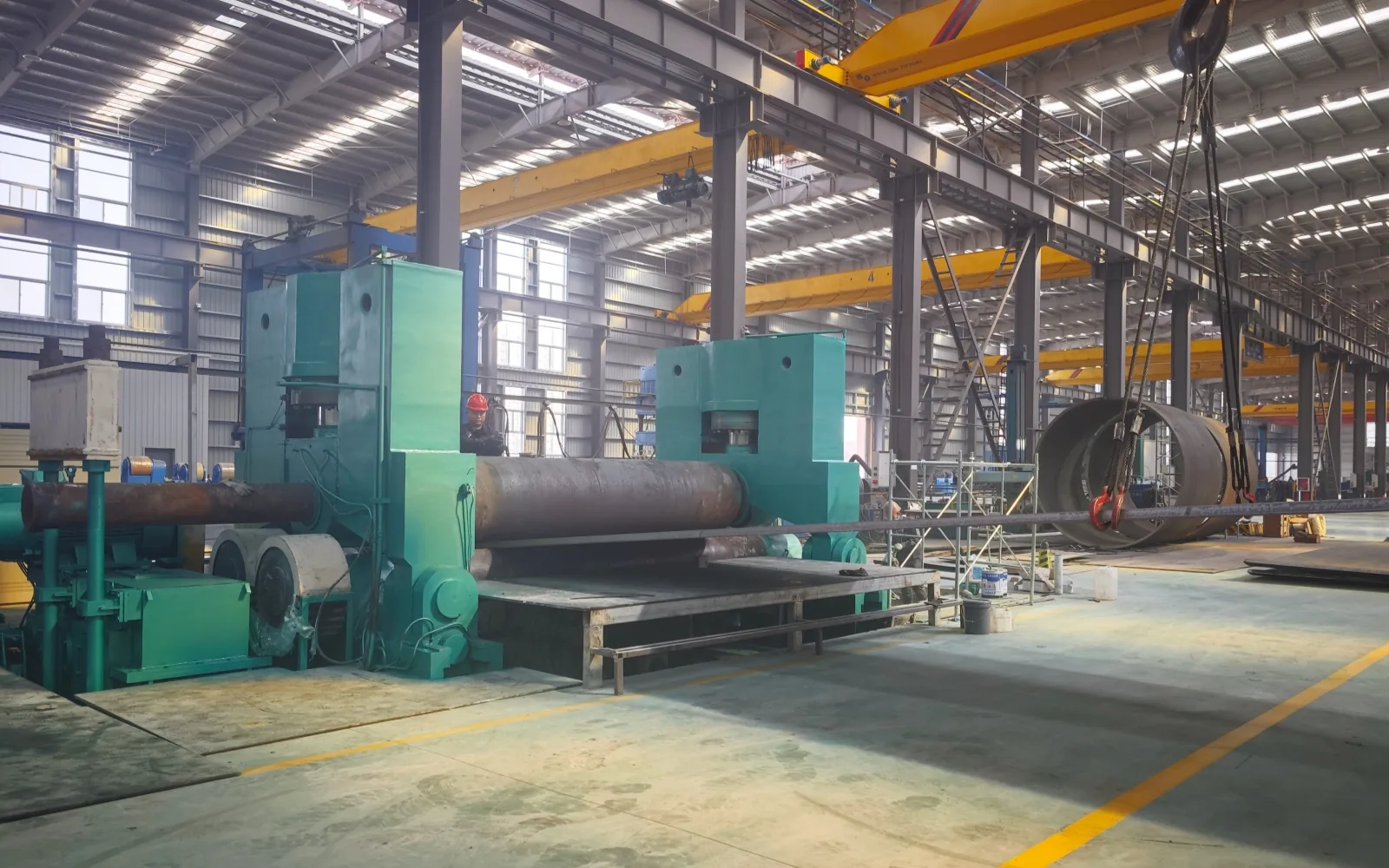

Core fabrication equipment
Cutting, rolling, fit-up and related fabrication equipment is assessed for each project against material, plate width, diameter, structure and process requirements.
03

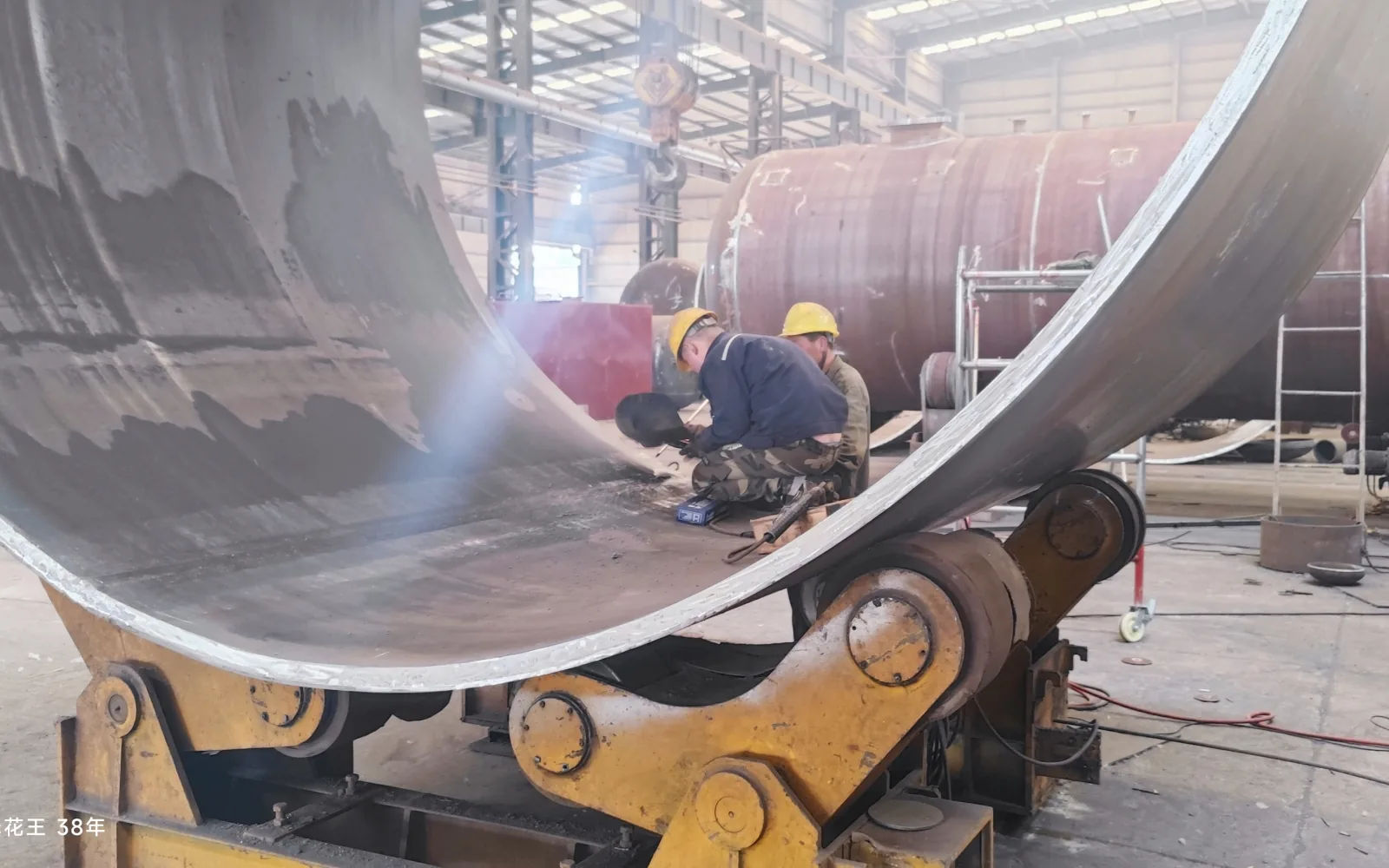

Cutting and forming
Material identification transfer, cutting, edge preparation, rolling and forming are carried out to approved fabrication documents.
04

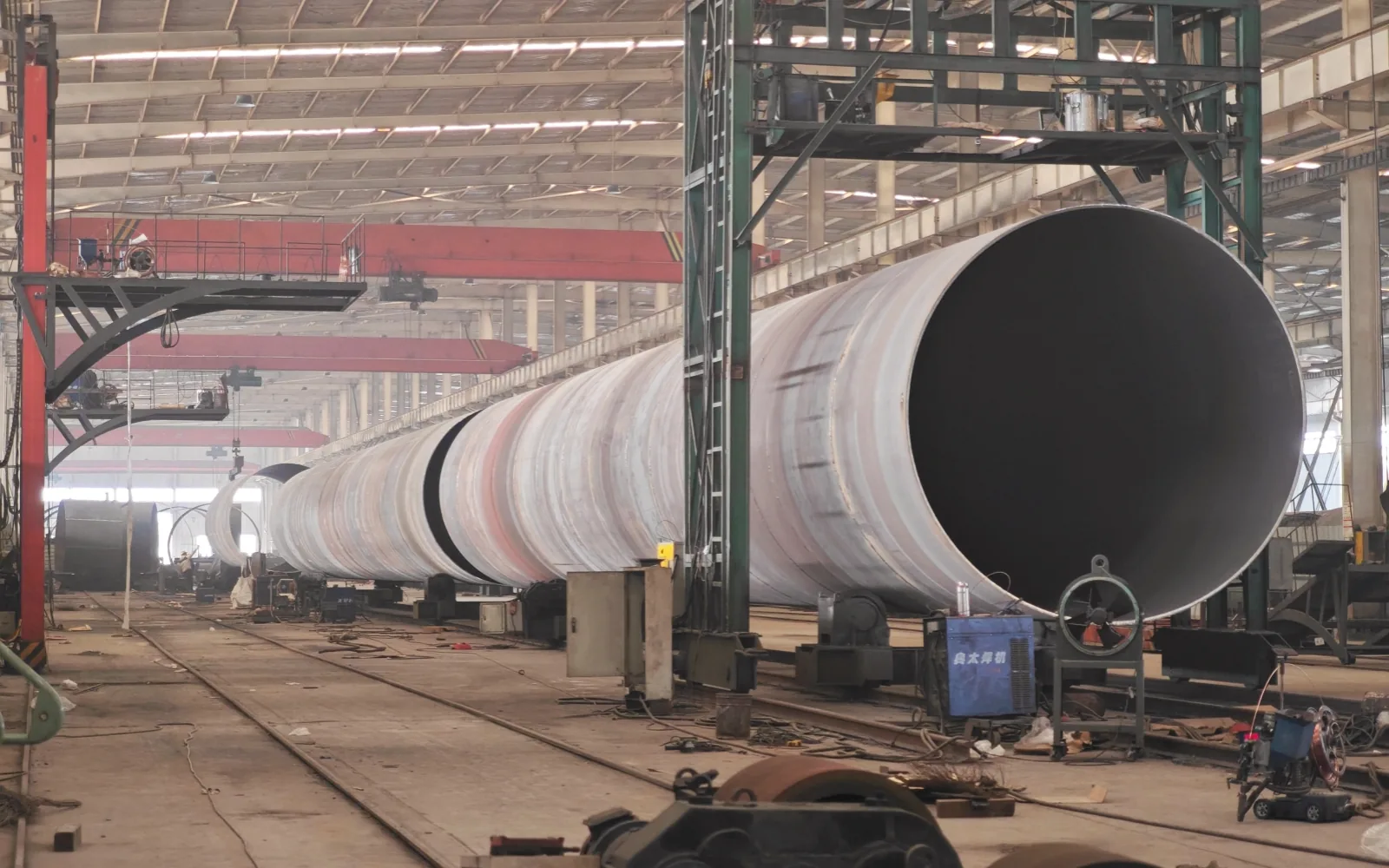

Large custom fabrication
Large, heavy, long and custom structures are planned around shop positions, lifting, sectional fabrication and transport constraints.
05

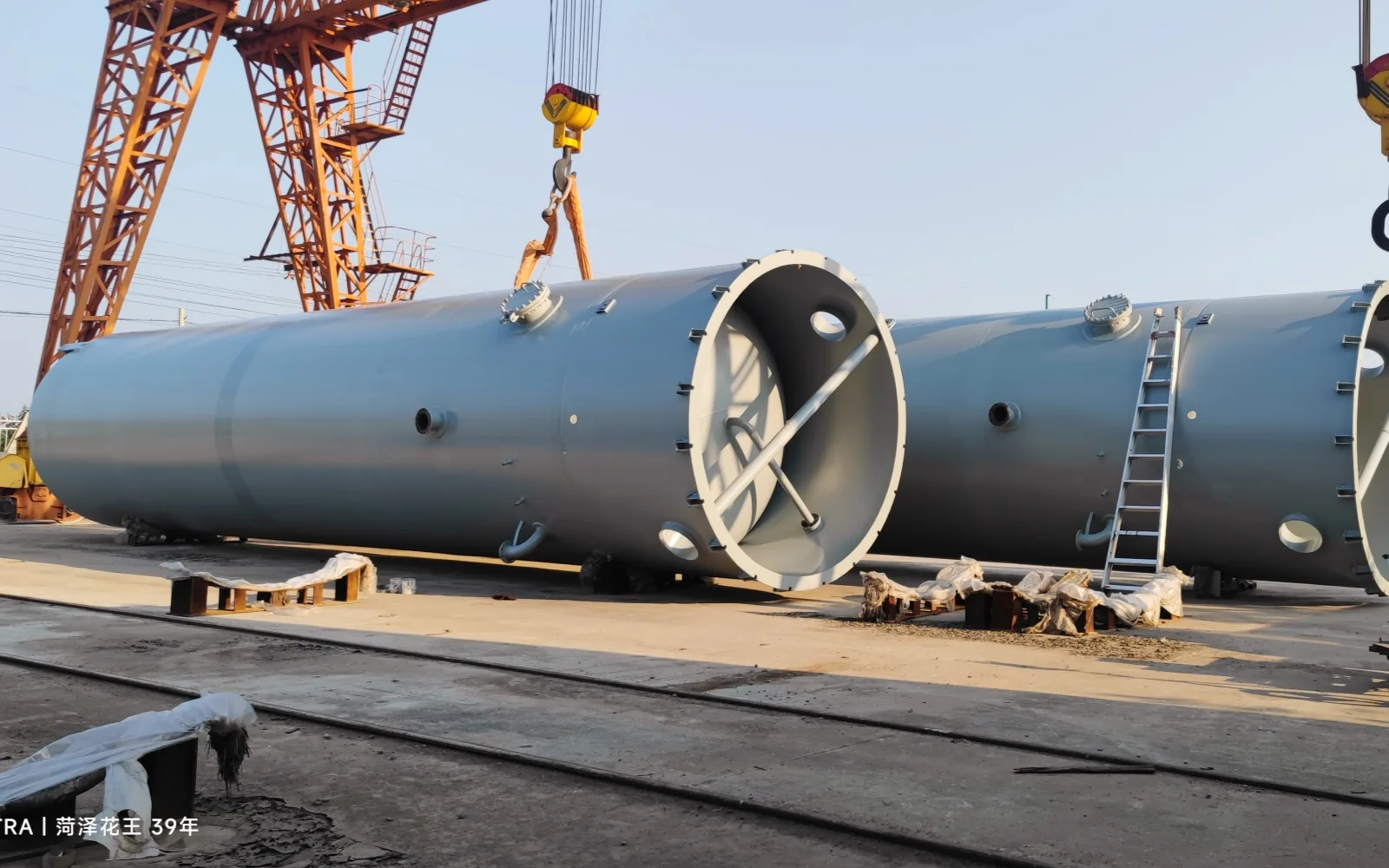

Welding and material control
Material receipt, identification and traceability continue through fabrication. Welding procedures, personnel qualification and process records follow project quality requirements.
06

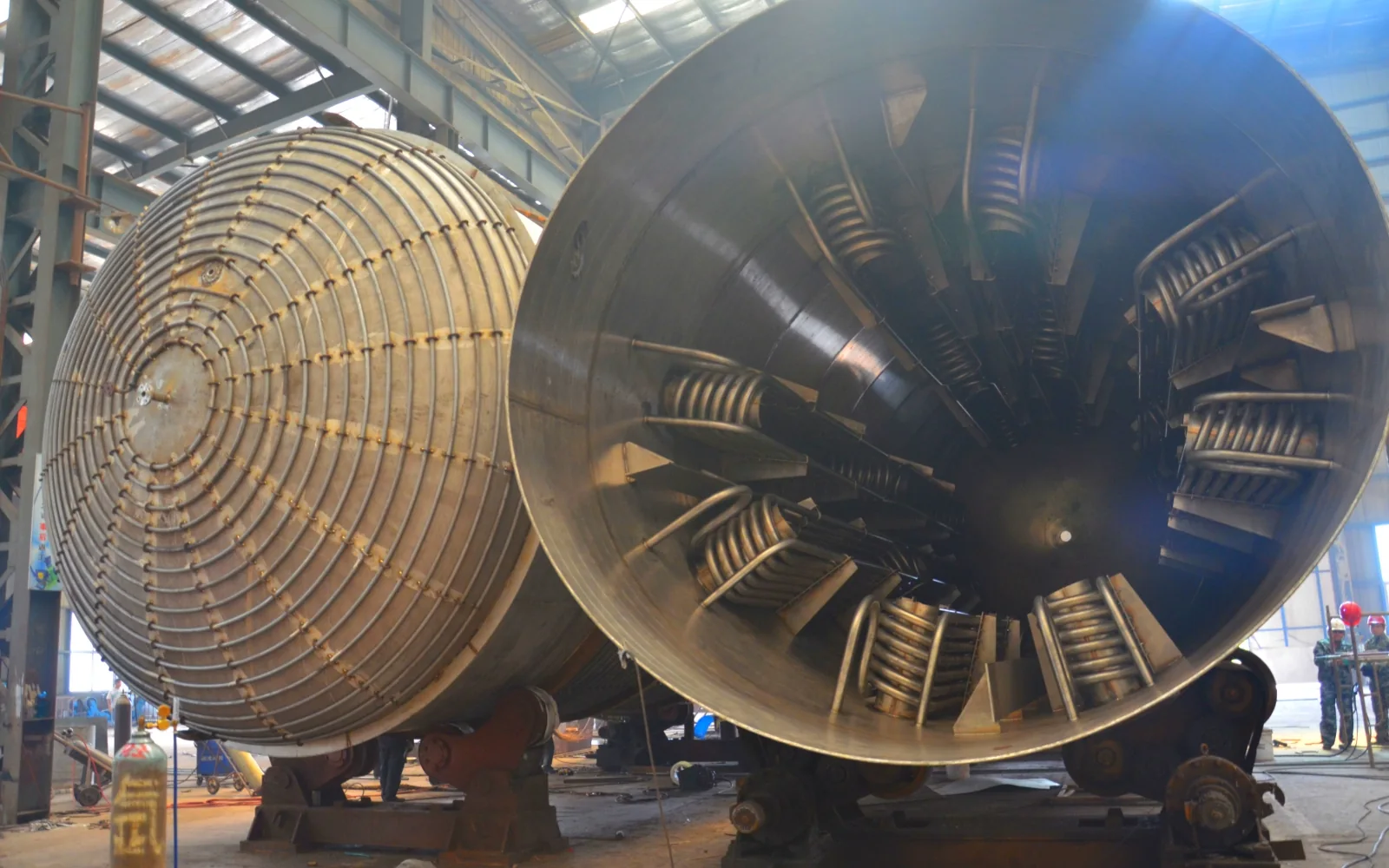

Heat treatment
An approximately 5 m × 5 m × 25 m heat treatment furnace is available. Applicability and the heat treatment cycle are confirmed against material, structure, dimensions and project specifications.
07
Non-destructive examination
RT, UT, MT, PT and TOFD are selected as applicable against material, welded-joint configuration, equipment structure and project specification.
08

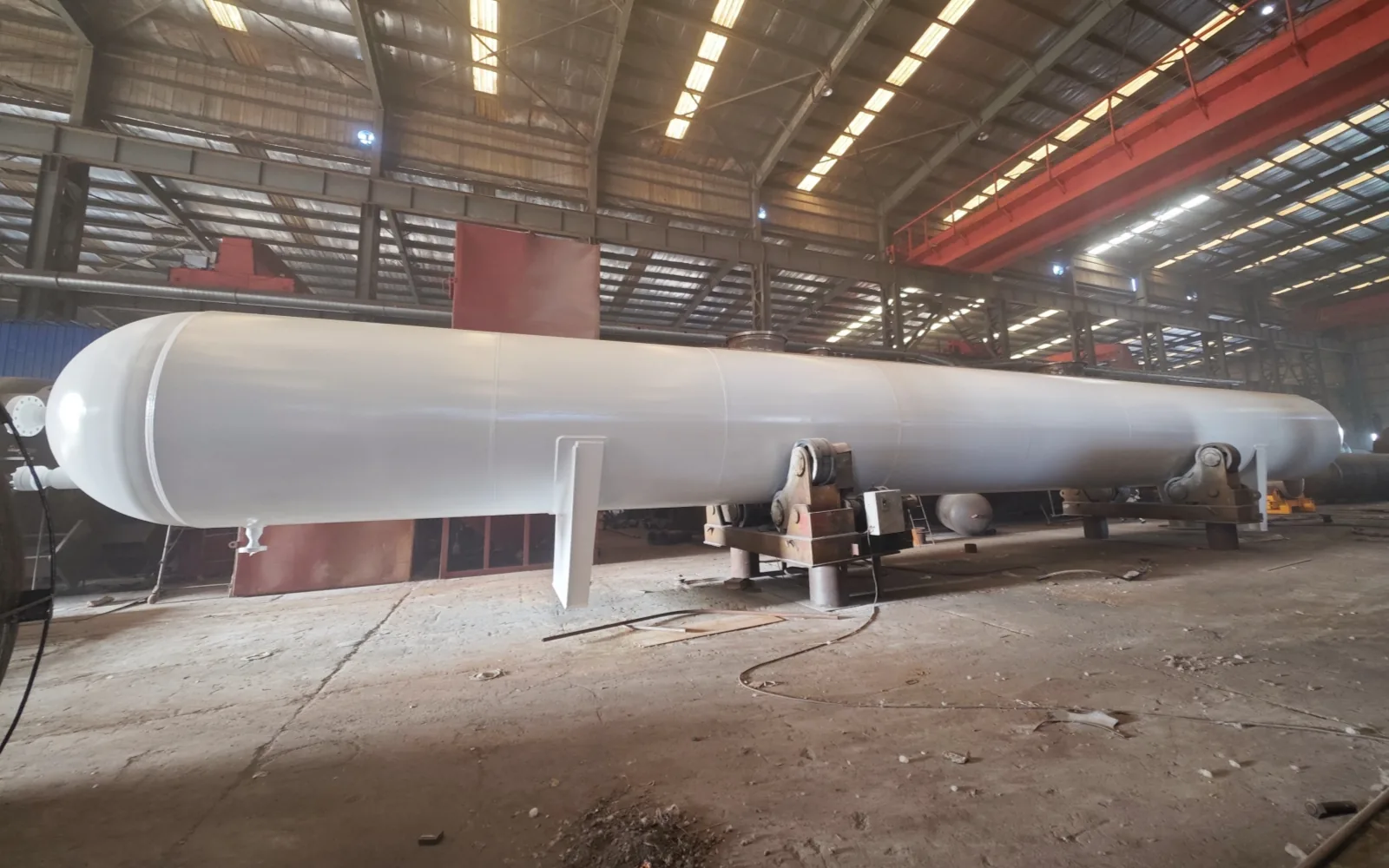

Testing and quality control
Document review, material receipt, in-process inspection, pressure testing and final documentation form a traceable quality-control chain.
09

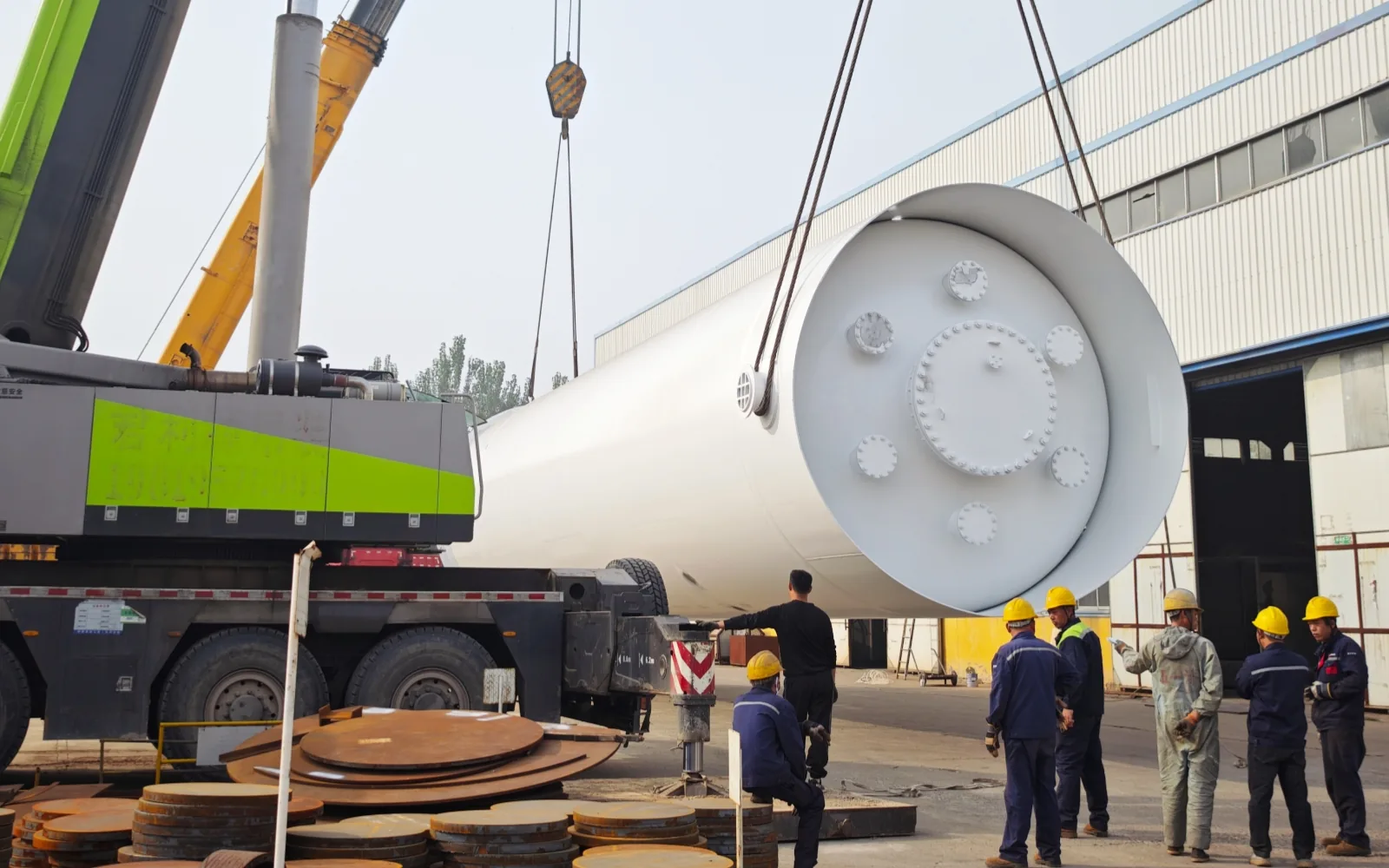

Lifting and shipment
A maximum 150 t lifting foundation supports large-equipment handling. Centre of gravity, lifting points, transport envelope, route and site delivery conditions are reviewed early.
QUALITY CONTROL
Traceable quality-control route
Project requirements are translated into review, fabrication, inspection, testing and final-document controls.- 01Project document review
- 02Material receipt and traceability
- 03Procedure document confirmation
- 04Cutting, forming and fit-up
- 05Welding process control
- 06Inspection and NDE
- 07Heat treatment where required
- 08Pressure testing and final inspection
- 09Final documentation and shipment
REAL PHOTOS
Verified manufacturing photographs
Only verified real fabrication scenes are shown. Photographs do not define a fixed model or rating.PROJECT INQUIRY
Need an assessment for large or custom equipment?
Send the drawing, specification, equipment data sheet and delivery constraints for a project-based manufacturability review.
