CUSTOM PRESSURE STORAGE VESSEL
Large Custom Pressure Storage Vessel
Fabrication assessment for large, heavy, special-dimension and complex-interface pressure storage vessels based on project drawings, technical specifications and confirmed design conditions.
- Large custom vessel
- Heavy equipment
- Special dimensions
- Build to drawing
HEZE HUAWANG manufactures pressure vessels and process equipment against approved project drawings, specifications and applicable codes.
MANUFACTURING SCOPE
Fabrication scope
The following describes assessable manufacturing directions, not unconditional or fixed-rating commitments.- Large and heavy equipment assessment
- Special dimensions and complex structures
- Complex nozzles and internal interfaces
- Sectional fabrication review
- Heavy lifting and internal handling
- Transport and site-interface planning
DESIGN & FABRICATION
Design and fabrication considerations
Materials, structure, inspection and process requirements remain governed by approved project documents and the applicable code.Material and forming
Material, thickness, plate width, shell diameter and forming requirements are reviewed together. The 120 mm value is an equipment capability, not a guarantee for every combination.
Structure and interfaces
Complex nozzles, internals, supports and transport reinforcement require coordinated fabrication sequence, welding access, inspection space and final assembly.
Sectional fabrication
Segmentation depends on design permission, shop positions, heat treatment, transport route and site assembly conditions, not on diameter or length alone.
Inspection and heat treatment
RT, UT, MT, PT and TOFD methods are available, together with an approximately 5 m × 5 m × 25 m heat-treatment furnace; applicability depends on material, joint, dimensions, procedure and project specification.
Lifting and transport
The 150 t maximum lifting foundation is subject to weight distribution, centre of gravity, lifting points, work position, transport envelope and route for each vessel.
QUALITY CONTROL
Fabrication and quality-control route
- 01Technical clarification and manufacturability review
- 02Material and critical-process planning
- 03Cutting, rolling and large fit-up
- 04Welding and dimensional control
- 05NDE and heat treatment where required
- 06Internals, connections and final assembly review
- 07Testing, final inspection and documentation
- 08Heavy lifting, transport and site interface
REAL PHOTOS

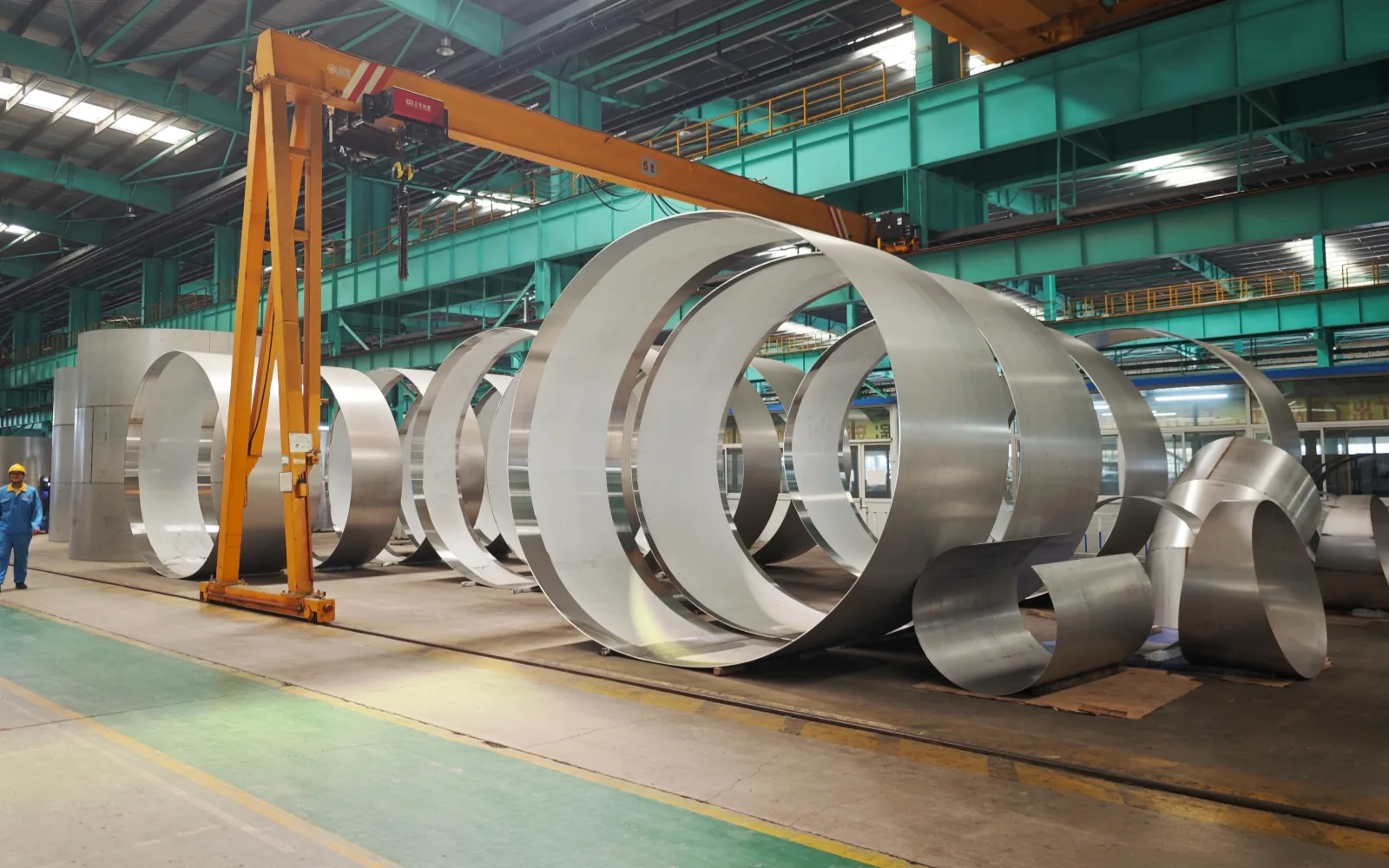

Large custom-equipment fabrication photographs
Only verified real fabrication scenes are shown. Photographs do not define a fixed model or rating.RFQ REQUIREMENTS
Information required for an RFQ
Send approved documents where available. If design is incomplete, begin with the following project inputs.Drawings available
Upload the effective drawing revision, data sheet, specification, quality requirements and required delivery date through the RFQ form.
Project input checklist
- Approved drawings, specification and data sheet
- Duty, medium and design conditions
- Material, thickness and supplementary requirements
- Dimensions, unit weight and quantity
- Complex nozzles, internals and interfaces
- NDE, heat treatment and testing
- Quality plan and documentation list
- Sectional and site-assembly conditions
- Transport route, lifting and installation constraints
- Required date and phased delivery
FAQ
Frequently asked questions
01What must be confirmed before pricing a large custom vessel?＋
In addition to drawings and design conditions, material, dimensions and weight, quality requirements, segmentation, transport route and site lifting and installation constraints should be clarified early.
02Does 120 mm rolling capability apply to every material?＋
No. It is an equipment capability value. Material, plate width, shell diameter, forming quality and project procedure requirements must be reviewed together.
03Must every large vessel be fabricated in sections?＋
No. The decision depends on design permission, shop positions, heat treatment, transport and site assembly conditions.
04Does 150 t lifting capacity mean any 150 t vessel can be lifted directly?＋
No. Centre of gravity, lifting points, orientation, work position, rigging and safe operating conditions govern the actual plan.
05Can manufacturability be discussed before drawings are final?＋
Yes, provided the document revision, open points and change responsibility are clear. Early comments are for feasibility discussion; final fabrication follows approved documents.
